Demand for the smallest multilayer flexible circuits is growing as European and North American teams develop thinner wearables, medical instruments, sensors, cameras, automotive modules and connected devices. Yet “smallest” is not a universal dimension. The practical limit depends on electrical density, layer count, bend radius, connector geometry, assembly access, testing, thermal conditions and yield.

The buyer’s real question is whether the circuit can be fabricated, assembled, tested and supplied consistently. A successful miniature FPC balances space savings with signal integrity, mechanical reliability, component availability and documented quality.

Editor’s note: This article is an educational manufacturing guide. Final design rules, reliability targets and market-access requirements should be confirmed with the responsible engineering team, manufacturer and test laboratory.

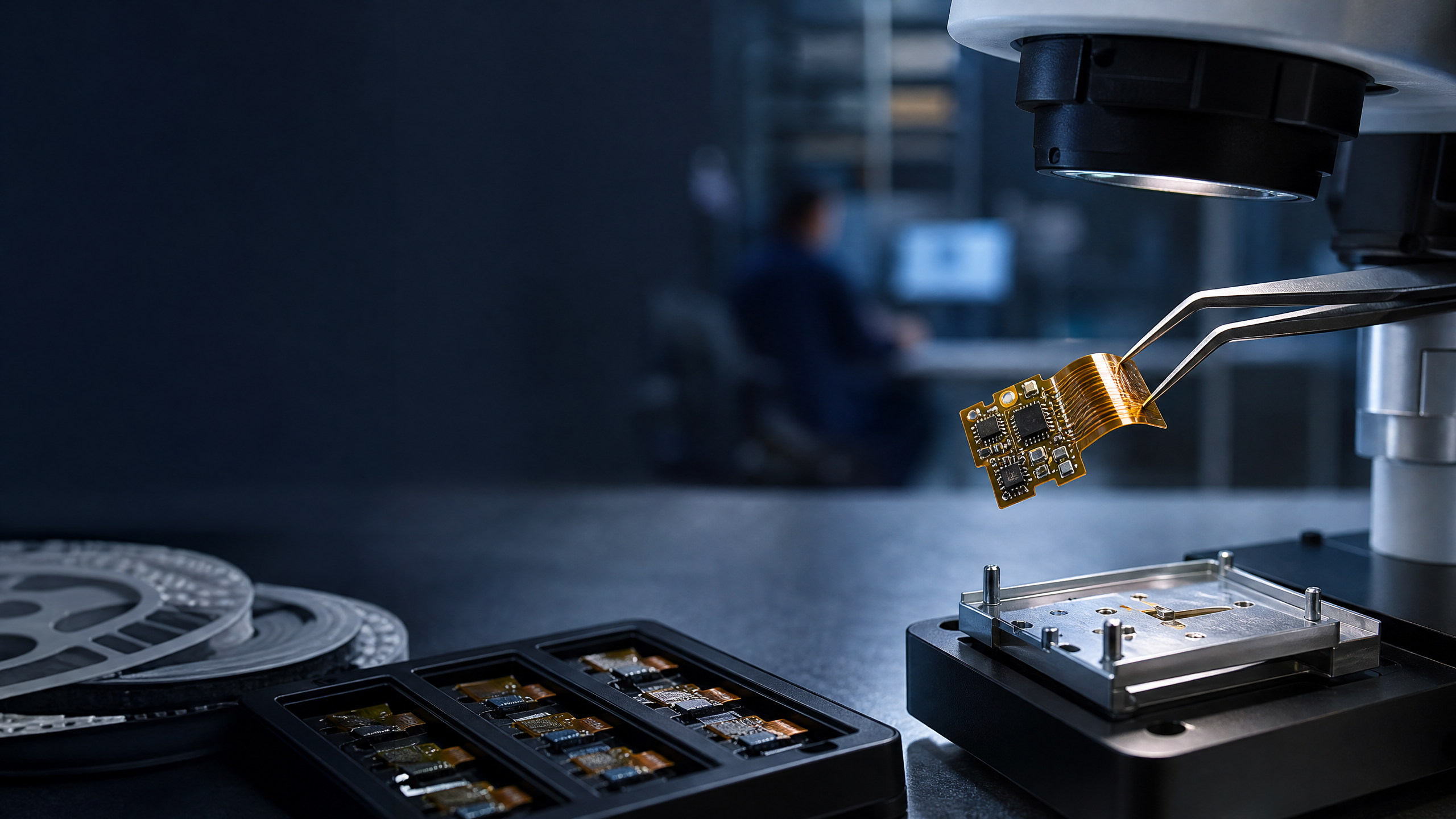

Suggested caption: Miniaturization works best when design, assembly and testing are planned as one process.

Why the Smallest Multilayer Flexible Circuits Require More Than Miniaturization

Smaller does not automatically mean better

Reducing the outline of a flex circuit can create more room inside a product, but it may also reduce routing space, increase layer-to-layer registration sensitivity and make inspection more difficult. A very compact design can place components close to a bend zone, concentrate heat near a connector or leave too little room for a test probe.

The best miniature circuit is the smallest design that still meets electrical, mechanical and manufacturing requirements. A slightly larger board with controlled bend areas and accessible test points may deliver better cost and reliability than an aggressively reduced, low-yield design.

Multilayer construction creates design opportunities and risks

Multilayer flex circuits can support more routing density, controlled impedance, ground references and compact component interconnection. They can also introduce additional process risks, including layer alignment, via reliability, coverlay registration, lamination control and local stiffness changes.

IPC identifies specific requirements for flexible and rigid-flexible printed-board applications, including component mounting and interconnecting structures. This is why a miniature FPC should be reviewed as both an electrical interconnect and a mechanical part. The bend profile, neutral axis, copper geometry and stiffener design all influence performance.

From Miniature FPC Concept to Production-Ready Circuit

Step 1: Define the product envelope and movement

Start with the enclosure and operating environment. Share the available space, keep-out zones, connector position, temperature range, motion profile, expected bend cycles, current and voltage, signal requirements and target market. State whether bending occurs during installation, normal operation or both.

The supplier should ask how operators and automated equipment will handle the circuit. A design that works in CAD may be difficult to load into SMT equipment or may be damaged when an unsupported area is gripped.

Step 2: Select the layer structure for the actual problem

More layers do not always provide the best answer. A two-layer or four-layer flex may be appropriate for a short interconnect, while a higher-layer structure may be justified by routing density, shielding, impedance control or connector escape requirements. The stack-up should be evaluated together with dielectric thickness, copper weight, coverlay, adhesive system, stiffeners and finish.

Place complexity where it creates value. Unnecessary layers add cost, thickness, fabrication time and inspection effort; necessary layers can prevent crowded routing and repeated redesign.

Step 3: Apply DFM and DFA before ordering samples

Design for manufacturability checks whether the circuit can be produced consistently. Design for assembly checks whether components can be placed, soldered, inspected and tested without avoidable rework. For a smallest multilayer flexible circuit, the review should cover fine-pitch pads, via structure, annular rings, edge tolerances, stiffener transitions, exposed copper, connector alignment and dynamic bend zones.

A useful prototype answers a defined question. Does the circuit fit the housing? Does it bend without transferring stress to the solder joint? Can the connector be inserted repeatedly? Can inspection equipment access critical features? This evidence is more valuable than a sample produced without a clear validation objective.

Step 4: Connect materials and assembly to the design

A miniature circuit can be delayed by one unavailable connector, sensor or fine-pitch component. Provide a controlled BOM with manufacturer part numbers, approved alternatives, lifecycle information and customer approval rules. Each substitution should be reviewed for package, electrical performance, thermal behavior, mechanical clearance and required documentation.

For assembly, the supplier should define handling methods, carrier requirements, solder profile, component orientation, inspection points and packaging protection. Flexible boards often need temporary support during SMT and careful separation from rigid sections or stiffeners.

Buyer-focused design and manufacturing evidence

Reliability, Testing and Compliance for European and U.S. Buyers

Testing should be planned before volume production. Depending on risk and product type, a miniature FPC assembly may require visual inspection, automated optical inspection, X-ray, flying-probe testing, in-circuit testing, insulation testing, connector cycling or functional validation. The correct mix depends on access, volume, operating conditions and the failure modes that matter most.

The European Commission states that the RoHS Directive restricts hazardous substances in electrical and electronic equipment to protect human health and the environment. It currently covers ten restricted substances, including lead, cadmium, mercury and certain flame retardants and plasticisers. The final product may also require review of REACH, WEEE, CE-related obligations or sector-specific rules.

In the United States, products with radio-frequency functions may require FCC equipment authorization before marketing or import. Medical, automotive, battery, aerospace and industrial products can introduce additional requirements. A supplier can organize material declarations, test samples and production records, but should not promise certification without reviewing the complete product.

Questions that reveal real supplier capability

Ask which dimensions are measured, how layer registration is verified, how flex areas are protected during assembly and how test data is linked to lot or revision. Ask whether prototype samples use the intended production process. Ask how nonconforming material is isolated and how engineering changes are approved. These questions provide more useful evidence than a general claim that a supplier offers “high quality.”

How to Request a Quote for the Smallest Multilayer Flexible Circuits

A complete RFQ enables engineering feedback instead of only a unit price. Include the application, enclosure drawing, dimensions, layer count, stack-up, copper requirements, bend profile, expected cycles, connector details, BOM, assembly files, quantities, test scope, destination market and launch date. Mark unknown information as “TBD.”

To make the first conversation faster, download the Smallest Multilayer Flexible Circuits RFQ Checklist and attach it with your drawings and BOM.

Download the Smallest Multilayer Flexible Circuits RFQ Checklist

A practical next step for engineering teams

Send your Gerber or ODB++ files, stack-up, BOM and product objectives for a preliminary DFM review. If the design is incomplete, a capable partner should identify missing inputs, highlight miniaturization risks, propose test coverage and explain the decisions required before prototyping.

Request a smallest multilayer flexible circuits design review
